Unified $y^+$ calculator
Published:
Simple software to calculator $y^+$ and other quantities for various type of boundary-layer turbulent flows.

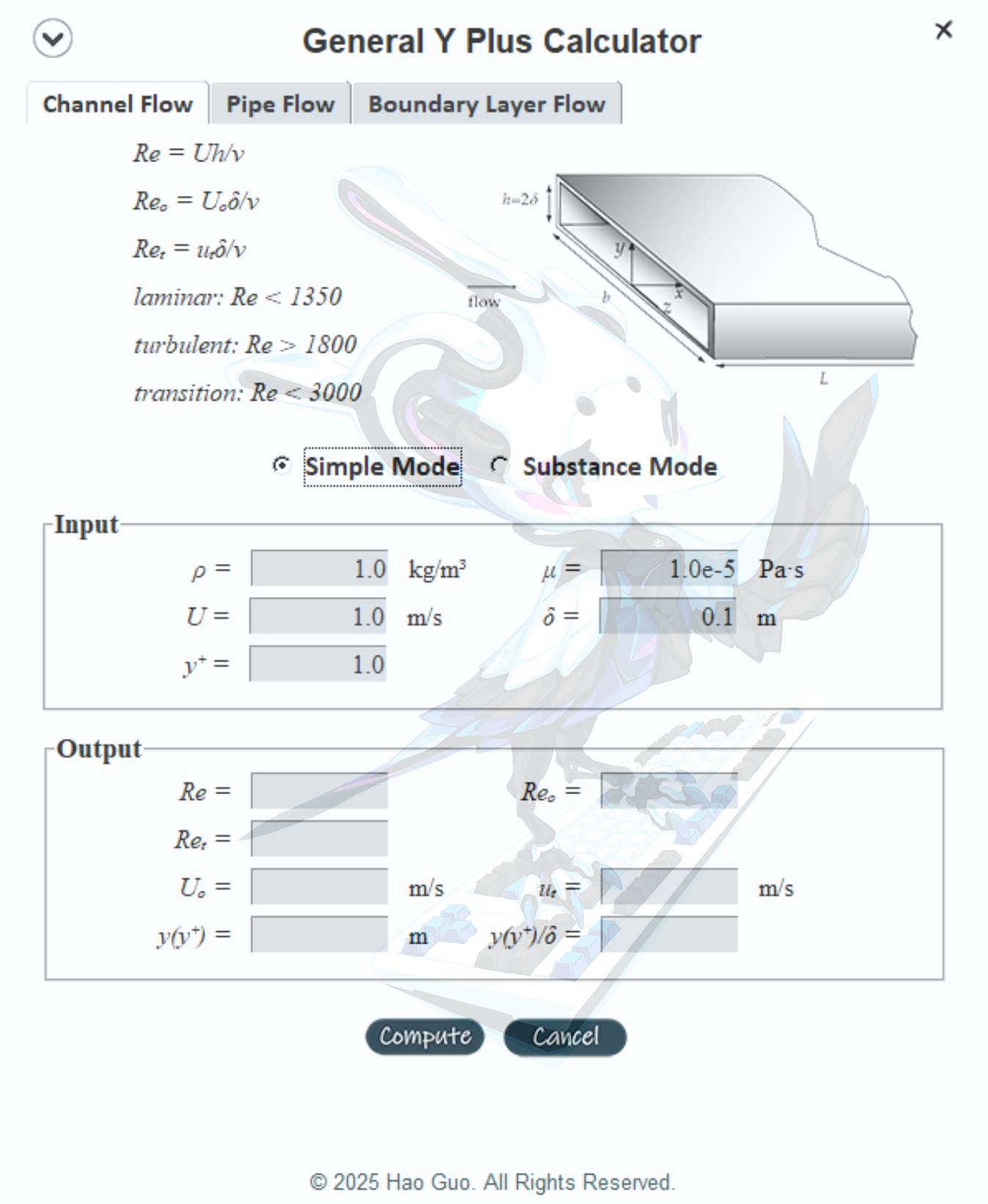

The tab to calculate $y^+$ for the channel flow:

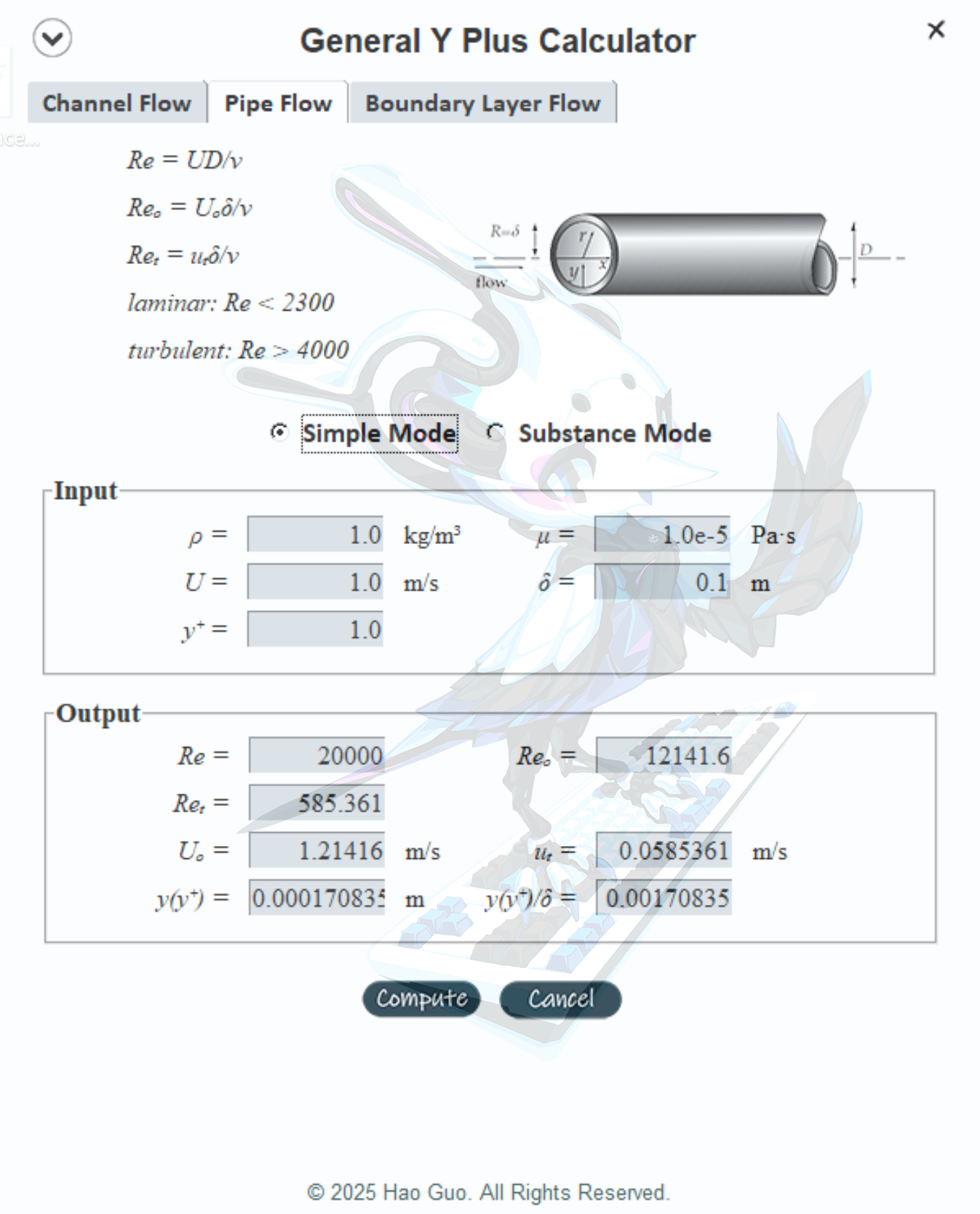

The tab to calculate $y^+$ for the pipe flow:

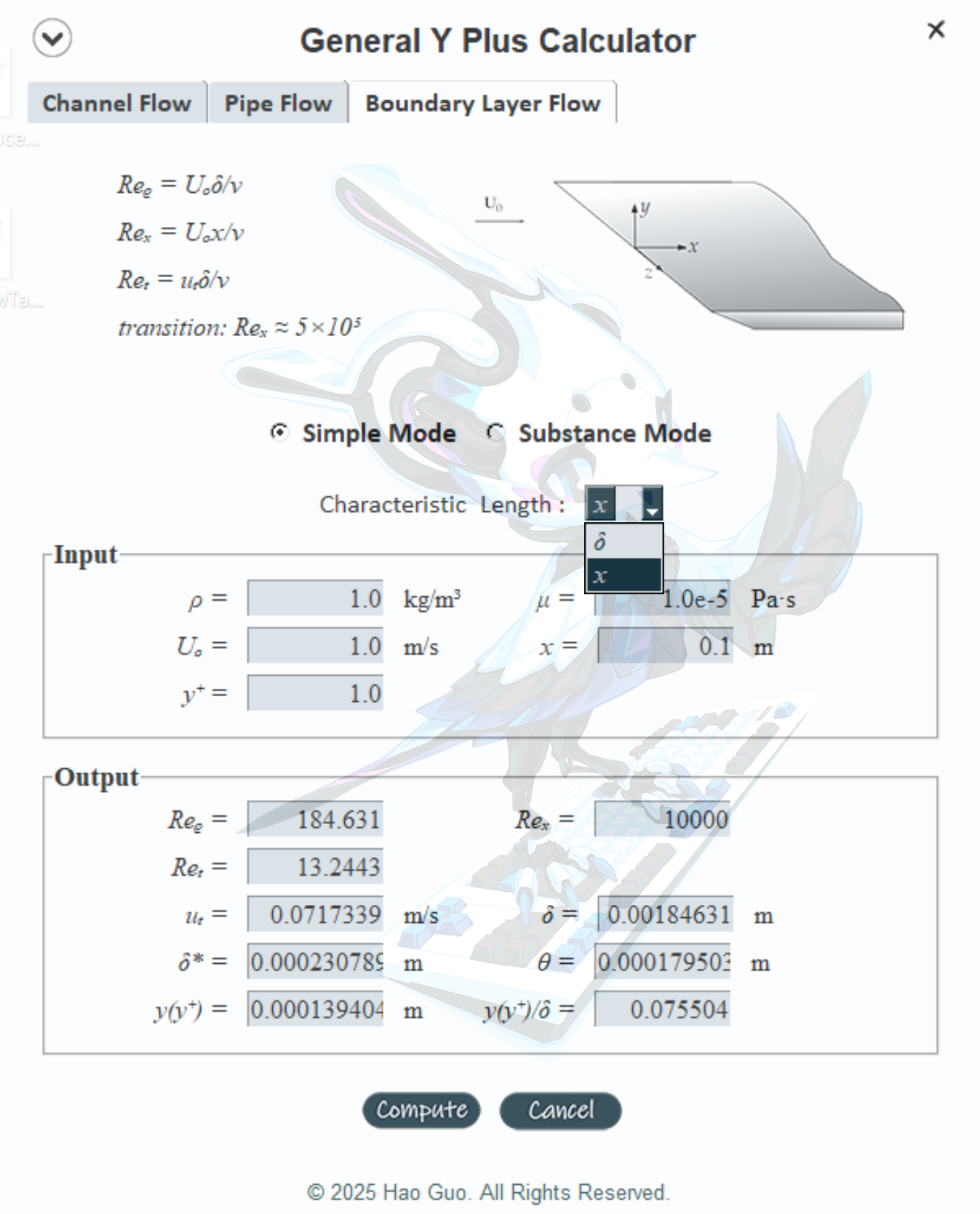

The tab to calculate $y^+$ for the developing-boundary-layer flow:

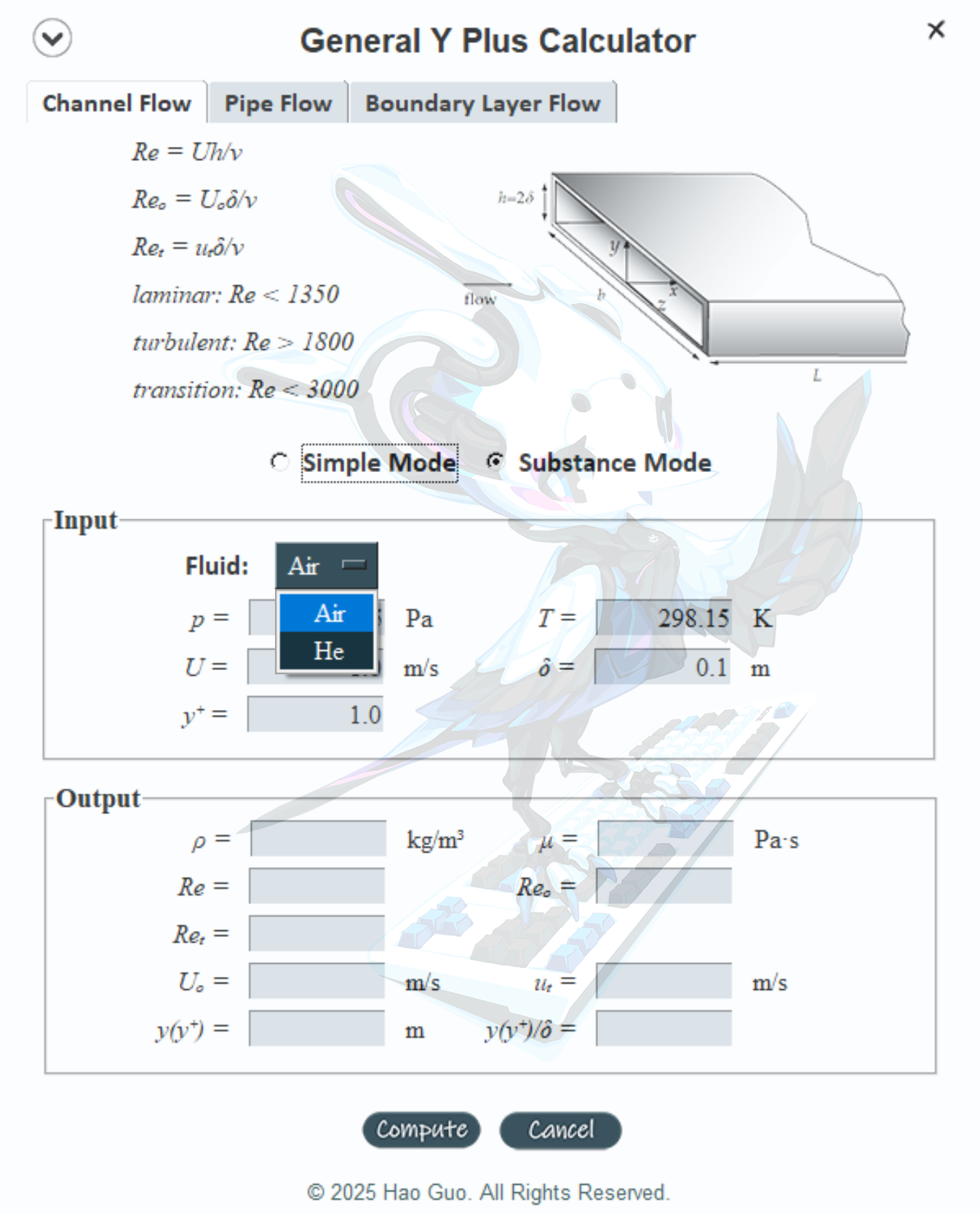

A substance mode can also be used (only support properties of air and helium for now):

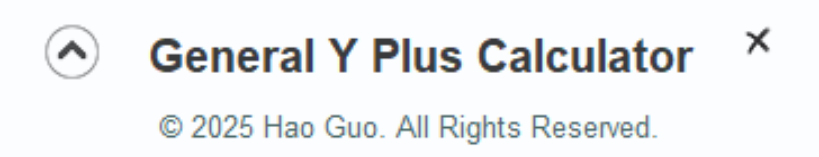

Moreover, the background of this GUI interface is transparent (that is why the cute Kate in my wallpaper can be seen from above screenshots). And the layout can be collapsed by click on the ⓥ button:
Download the executable for Windows system: Unified Yplus Calculator.exe
